TD6
HG
8421199090

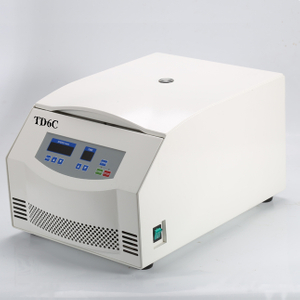

TD6 6000rpm low speed centrifuge
TD6 6000rpm centrifuge, just to meet customers who need rotor to 6000rpm. our TD6 centrifuge can hold 12*15ml angle rotor to reach 6000rpm.
Features
1. Microprocessor control, digital display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.
2. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.
3. Automatic lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
4. Adapters are available by experiment requirements.
5. 10 kinds brake systems.
6. Stainless steel charmber
TD6 CentrifugeTechnical Parameter
Max. Speed | 6000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×180ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 55 |
Temperature | Normal |
Acc/Dcc | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 540×370×280mm |
Net Weight(Kg) | 28KG |
Certificates | CE,ISO & Calibration report are available |
Matched Rotors for TD6 Centrifuge
Order No. | Rotor | Max Speed (rpm) | Max Volume (ml) | Max. RCF（×g） |
H6-1 | Angle Rotor | 6000 | 6×15ml | 3660 |
H6-2 | Angle Rotor | 6000 | 12×15ml | 4430 |
H6-3 | Angle Rotor | 6000 | 6×50ml | 4110 |
H6-4 | Angle Rotor | 5000 | 4×50ml | 3620 |
H6-5 | Angle Rotor | 6000 | 4×100ml | 3790 |
H6-6 | Angle Rotor | 5000 | 24×15ml | 3500 |
H6-7 | Angle Rotor | 5000 | 12×50ml | 3860 |
H6-8 | Angle Rotor | 5000 | 6×100ml | 3130 |
H6-9 | Angle Rotor | 4000 | 12×100ml | 2970 |
