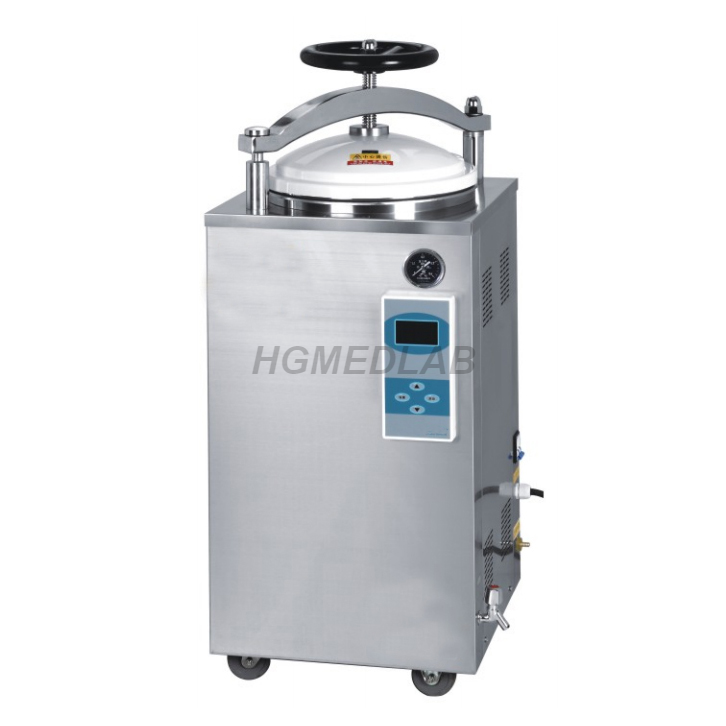

Vertical Pressure Steam Sterilizer 35L/ 50L/75L/100L

LCD display vertical steam sterilizer widely used in lab, clinic, factory to sterilize the goods customers' need. Various size of sterilizers are available.
Availability:
Quantity:
sharethis sharing button
  • LS-35HD 50HD 75HD 100HD

  • HGMLAB

Usage of steam pressuer sterilizer

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.


Characteristics

• Fully stainless steel structure.

• Auto discharge the cool air, and steam discharge automatically after sterilization.

• Automatically shut off with beep reminding after sterilization.

• Hand wheel type of quick-open door structure.

• Over temperature & over pressure auto-protection.

• Easy to operate, safe and reliable.

• Door safety lock system.

• With two stainless steel sterilizing baskets.

• LCD display of working status, touch type key.

• Safe protection of water lacking.

• With drying system.

• Self inflating type seal.

Technical Data

MODEL

LS-35HD

LS-50HD

LS-75HD

LS-100HD

Technical   Data

Chamber   volume

35L

φ318×450mm

50L

φ340×550mm

75L

φ400×600mm

100L

φ440×650mm

Working   pressure

0.22Mpa

Working   temperature

134

Max.   working pressure

0.23Mpa

Heat   average

≤±1

Timer   range

0-99min   or 0-99hour59min

Temperature   adjust range

105-134

Power

1X2.5KW/AC220V 50HZ

2X1.5KW/AC220V 50HZ

3X1.5KW/AC220V 50HZ

Overall   dimension(mm

470×450×1020

52500×1150

550×530×1180

580×560×1290

Transport   dimension(wooden case)mm

570×570×1180

61610×1290

650×650×1330

680×680×1450

G.W/   N.W(wooden case)

84Kg/63Kg

99Kg/74Kg

118Kg/93Kg

133Kg/105Kg

Transport dimension(carton)(mm)

550x540x1070

580x580x1220

630x610x1250

-

G.W/N.W(carton)

70kg/63kg

82kg/74kg

100kg/93kg

-
