TGL16E
HGMLAB
8421199090

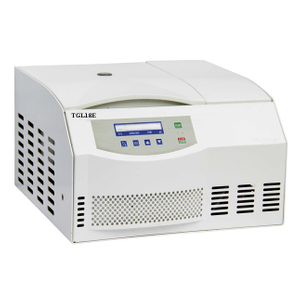

TGL16E Micro High Speed Refrigerated Centrifuge
TGL16E micro high speed refrigerated centrifuge enjoy great polularity during these two years, as for Nucleic acid test, 24*1.5/2ml angle rotor for virus separation, DNA, RNA separation
Features:
1. Microprocessor control, LCD display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.
2. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.
3. Automatic lid lock.
4. High quality steel frame, safe and reliable.
5. Adapters are available by experiment requirements.
6. 3 tiers protection steel cover, safe and reliable.
7. Adopting efficient fluorine-free compressor, fast in cooling.
TGL16E Micro High Speed Refrigerated Centrifuge Technical Parameter
Max. Speed | 16000rpm |
Max. RCF | 19040×g |
Max. Capacity | 10×5ml |
Time Range | 0~99h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 55 |
Temperature | -20℃-40℃ |
Acc/Dcc | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage (V/Hz) | AC 220V 50HZ/60HZ |
Size (W x D x Hmm) | 480×480×275mm |
Net Weight(Kg) | 43KG |
Matched Rotors for TGL16E
Order No | Rotor | Max speed (rpm) | Max Volume(ml) | Max RCF (*g) |
16E-1 | Angle rotor | 13000 | 4×8PCR | 10410 |
16E-2 | Angle rotor | 13000 | 6×8PCR | 16080 |
16E-3 | Angle Rotor | 13000 | 40×0.5ml | 17210 |
16E-4 | Angle Rotor | 16000 | 12×1.5/2ml | 17940 |
16E-5 | Angle Rotor | 14000 | 24×1.5/2ml | 15470 |
16E-6 | Angle Rotor | 13000 | 30×1.5/2ml | 17930 |
16E-7 | Angle Rotor | 12000 | 48×1.5/2ml | 15280 |
16E-8 | Angle Rotor | 13000 | 10×5ml | 11810 |
16E-9 | Angle Rotor | 13000 | 6×10ml | 14190 |
